主要性能特點
（Main Features）
1. 傳送膠輥直徑為75mm，膠輥經久耐用。
2. 主傳動采用傘齒輪傳動，變頻調速、數字顯示、清洗段毛刷輥轉動分別由上、下毛刷由三組電機分別驅動，上部兩組，下部一組電機通過皮帶帶動毛刷轉動；
3. 清洗段和風干段可整體電動升降到400 mm，配有高強度螺桿升降機構，操作簡單，方便設備的維護、保養和檢修。
4. 毛刷(150mm)三對，軸頭采用不銹鋼材料加工配置、可洗硬/軟LOW-E、普通鍍膜和陽光鍍膜玻璃。
5. 適應于對清洗風干效果要求極高的玻璃鋼化爐、絲印線、夾層線等設備的配套使用。

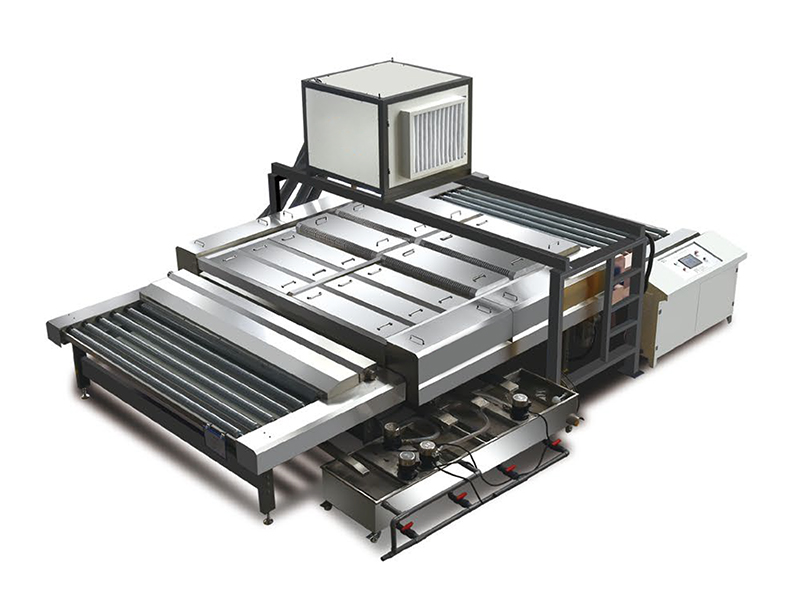

1. Transmission rollers adopt diameter of 75mm durable rubber rollers.
2. Main transmission adopts bevel gear drive with frequency control and digital display. The upper and lower brushes are driven separately by three motors（upper two, lower one) through belt driving
to ensure smooth rotation speed with high cycle life.
3. Top frame of both washing and drying sections equipped with high strength screw can be elevated by 400mm as a whole, easy to operate, for the convenience of cleaning and maintaining.
4. Three pairs of brushes(150mm), of which shafts are processed with stainless steel material, can wash hard and soft LOW-E glass, normal coated glass and sunshine coated glass.
5. It is especially suitable for supporting use of glass tempering furnace, screen printing line, laminating line and other equipment on highly demanding for cleaning and drying effect.
技術參數
（Main technical parameter）
最大玻璃寬度（Max width of glass）：2500mm
最小玻璃規格（Min length of glass）：400×400mm
玻璃厚度（Glass thickness）: 3~19mm
玻璃傳送速度（Glass conveyor speed）：0.6~6.5m/min
臺面高度（Height of operation platform）：880mm±20
總功率（Total power）：29.95KW
電源（Power）：380VAC 50HZ
重量（Weight）：About 4200kg
外形尺寸（Dimension）：6590×3800×3100mm
